Mechanical Cable Lugs KY-HB-P
KY-HB-P
Mechanical cable lugs are manufactured from high-strength copper and aluminum alloys and feature shear-bolt technology, eliminating the need for crimping tools.
Quantity:
Mechanical Cable Lugs
Designed for 35 kV power networks, the KY-HB-P Mechanical Cable Lug accommodates cables from 25 mm² to 240 mm².
This robust solution provides reliable, tool-efficient terminations for diverse electrical equipment with easy bolt-on installation.

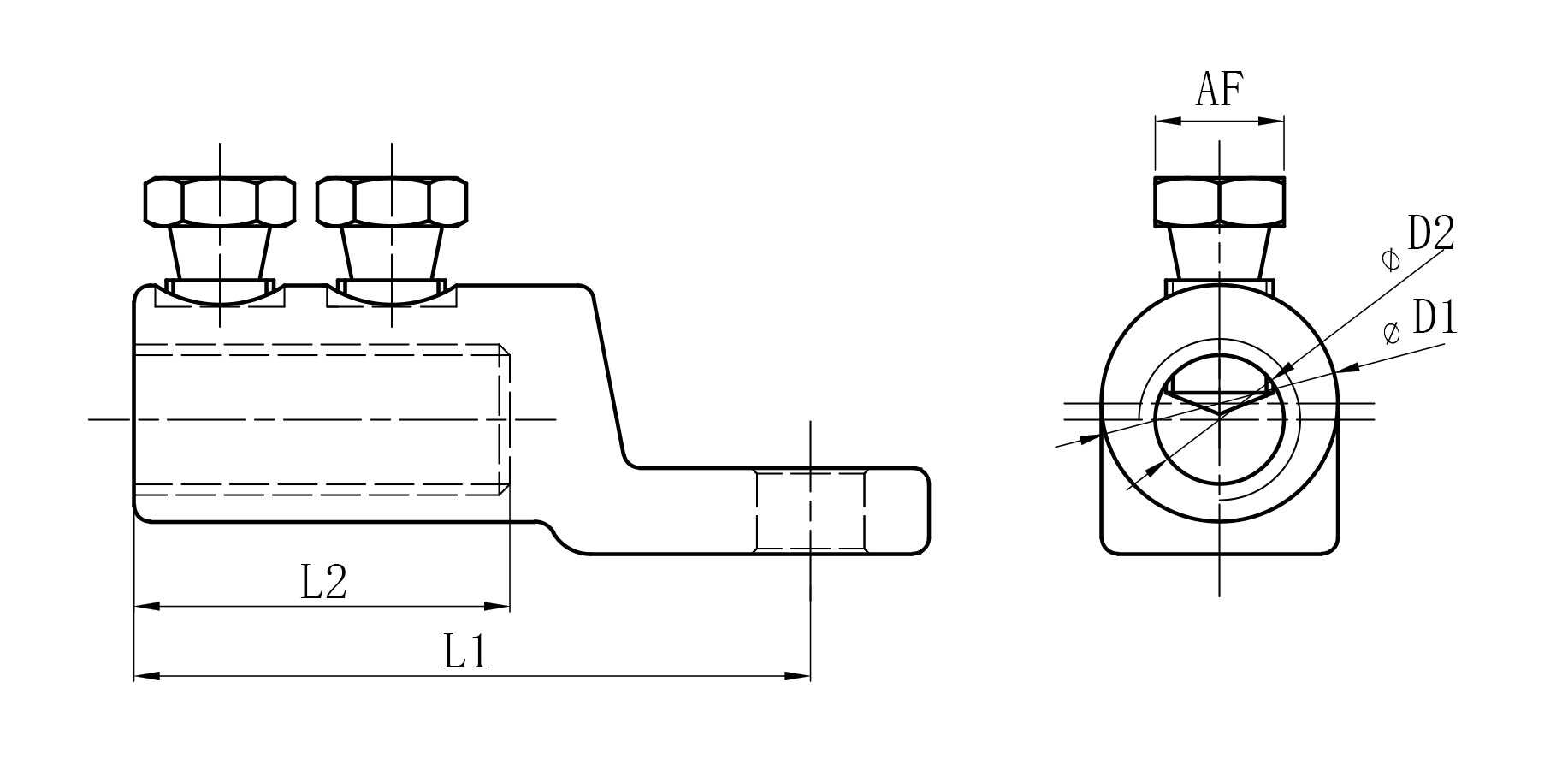

| Model | Cable Size(mm²) | Dimension(mm) | Bolt QTY. | AF | |||
| L1 | L2 | D1 | D2 | ||||
| KY-HB-P-25-50 | 25-50 | 63 | 35 | 22 | 12 | 2 | 12 |
| KY-HB-P-70-120 | 70-120 | 83.5 | 50 | 29 | 18 | 2 | 17 |
| KY-HB-P-150-240 | 150-240 | 98 | 55 | 36 | 25 | 2 | 19 |
Why Choose CONWELL Mechanical Cable Lugs?
• Application: Suitable for terminations on low and medium voltage cables.
• Conductor Range: Compatible with conductors from 25 mm² to 630 mm².
• Type: Mechanical crimp-style cable lug.
• Standards Compliance: Manufactured in compliance with relevant international electrical standards (e.g., IEC, GB), ensuring quality and safety.
